Description

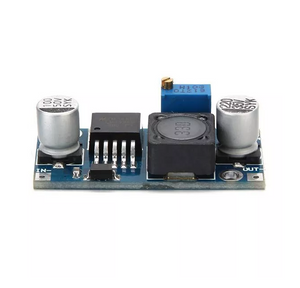

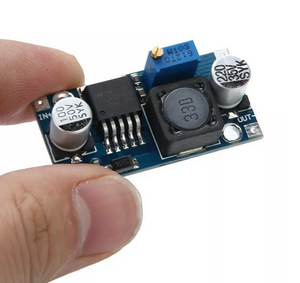

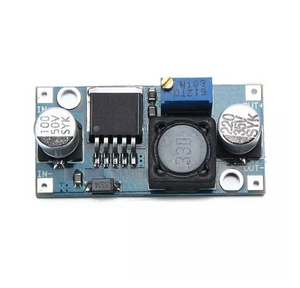

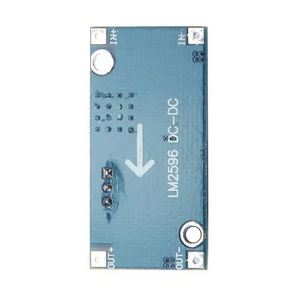

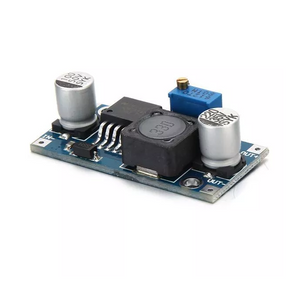

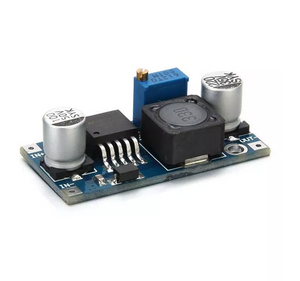

LM2596 DC to DC converter to step down voltages, the output voltage is adjustable with potentiometer. Make sure to check our Buck and Boost (step up and step down) converter XL6009

ALL OUR ITEMS ARE LOCALLY STOCKED AND SHIPS IMMEDIATELY!

Specifications

Input voltage:4.5-35V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)

Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Operating Temperature: Industrial grade (-40  to +85 ) (output power 10W or less)
Voltage Regulation: ± 2.5%
Dimension: 43mm X 20mm X 14mm (L*W*H)
