Description

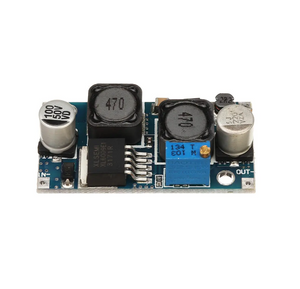

This module is super handy since it will automatically step up or step down depending on the output setting and the input voltage. Make sure to check our solar panels these are ideal for a solar panel.
ALL OUR ITEMS ARE LOCALLY STOCKED AND SHIPS IMMEDIATELY!
Specifications
Isolation: Non- isolated
Rectification: Non- Synchronous Rectification
Input Range: 3.8V - 32V
Output Range: 1.25V - 35V
Input Current: 3A ( max ) , no-load 18mA
Conversion efficiency: <94% ( the greater the pressure , the lower the efficiency )
Switching frequency: 400KHz
Output Ripple: 50mV ( the higher the voltage, the greater the current, the greater the ripple )
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Operating Temperature: -40°C to +85°C
Dimensions: 48 x 25 x 14mm ( L x W x H )
