Multifunctional expansion shield DHT11,LM35 temperature

Regular price
R 170.00
Sale price
R 170.00
Regular price
Sold out
Unit price
per
Tax included.

Description

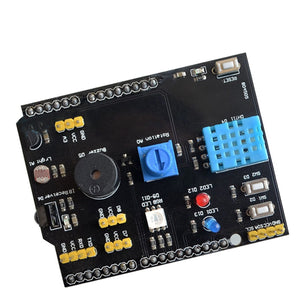

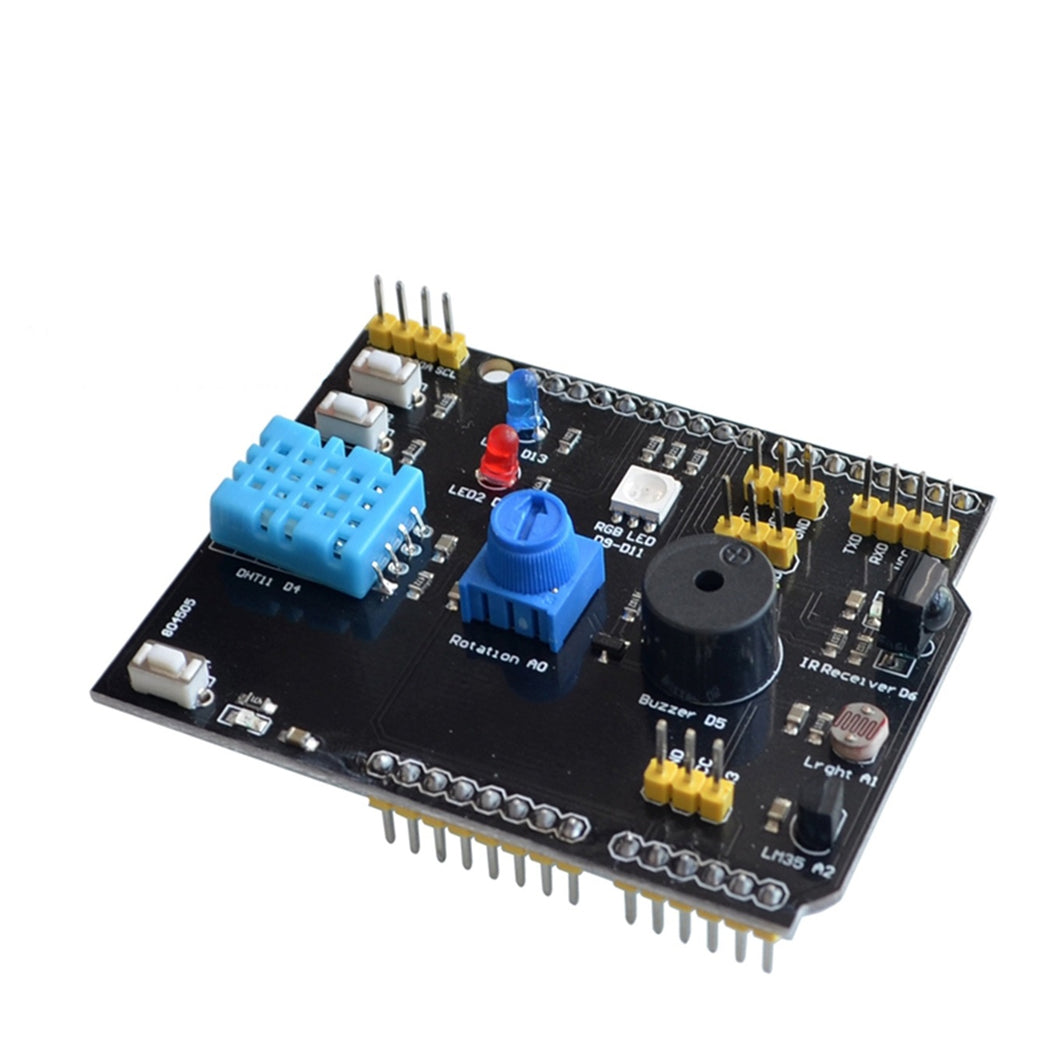

This shield is an excellent platform for those that are in the early phases of learning Ardiono. It's plug and play into your Arduino Uno and you can get started with the coding in no time. The relevant Arduino Uno pins are clearly marked on the board for easy reference.

Specifications

2 X Buttons (SW1 - D2, SW2 - D3)
2 X LED (Red - D12 and Blue - D13)
1 X LDR (A1)
1 X LM35D temperature sensor (A3)
1 X Passive Buzzer (D5)
1 X Rotary potentiometer (A0)
1 X RGB LED (D9-D11)
1 X Infrared receiver module (Check out our IR remotes, audio version) (D6)
1 X DHT11 temperature and humidity sensor module (D4)
1 X I2C interface (A4 SDA, A5 SCL)
1 X Reset button
