Description

A supper handy oscilloscope to debug your Arduino or Raspberry Pi projects. This kit needs some soldering and assembly so do ensure you have some experience in soldering before buying this kit.

Specifications

Number of channel: 1
Analog bandwidth: 0 - 200KHz
Sensitivity: 5mV/Div - 20V/Div
Sensitivity error: < 5%
Resolution: 12-bit
Input Impedance: 1M ohm
Maximum input voltage: 50Vpk
Coupling: DC, AC, GND
Max real-time sampling rate: 1Msps
Timebase: 10us/Div - 500s/Div
Record length: 1024
Trigger modes: Auto, Normal, Single
Trigger types: Rising/falling edge
Trigger position: 1/2 of buffer size fixed
2.4-inch color TFT LCD with 320 x 240 resolution
Power supply: 9V DC do ensure you don't exceed the 9V maximum!
Supply current: 120mA @ 9V

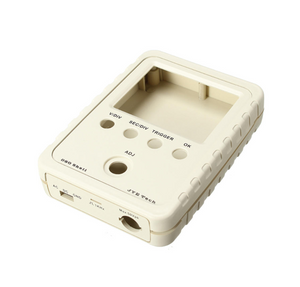

Dimension: 115mm x 75mm x 22mm
