HC-12 SI4463 Wireless Serial Port Module

Regular price
R 160.00
Sale price
R 160.00
Regular price
Sold out
Unit price
per
Tax included.

Description

Wireless serial port, these modules is very compact and will get the signal end to end.... They are low frequency (433mHz) and for those reasons they are very reliable in environments with lots of concrete. There is nothing more frustrating when you get your radio up and running only to find out they don't have the grunt to get the signal from end to end. This little beast really ticks all the boxes.

Specifications

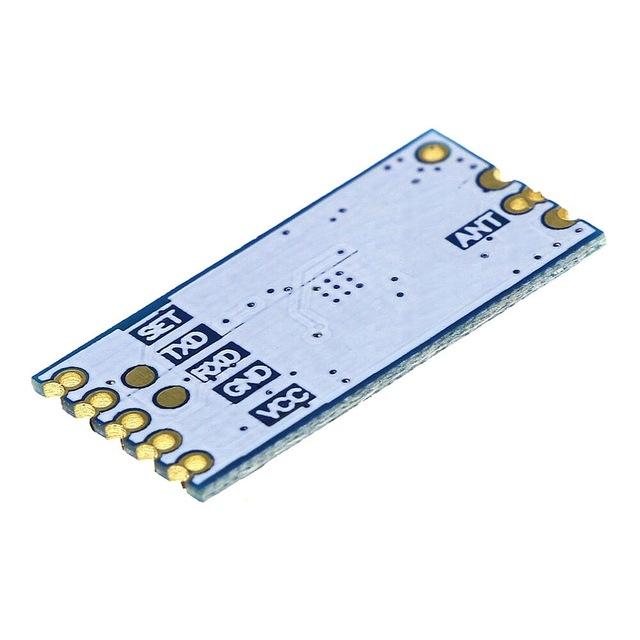

HC-12 Si4463 Serial port pin out

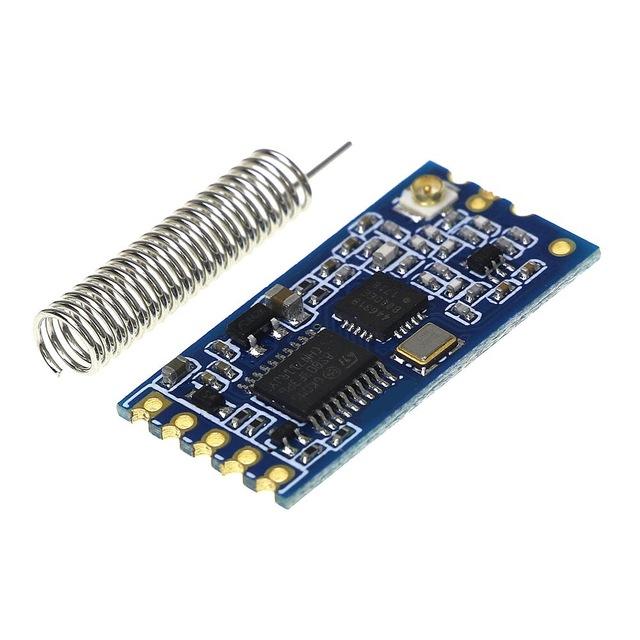

HC-12 SI4463 PCB Diagram

Voltage: 3.2 - 5.5 (lower voltage is recommended when transmitting lots of data)

Size: 27.8mm × 14.4mm × 4mm.

Frequency: 433 MHz

Factory Default: FU3, baud rate 9600bps, communication channel CH001

Line of Sight Range: 600M (ideal conditions), real world conditions 400M is probably realistic.

Datasheet: https://www.elecrow.com/download/HC-12.pdf
