Description

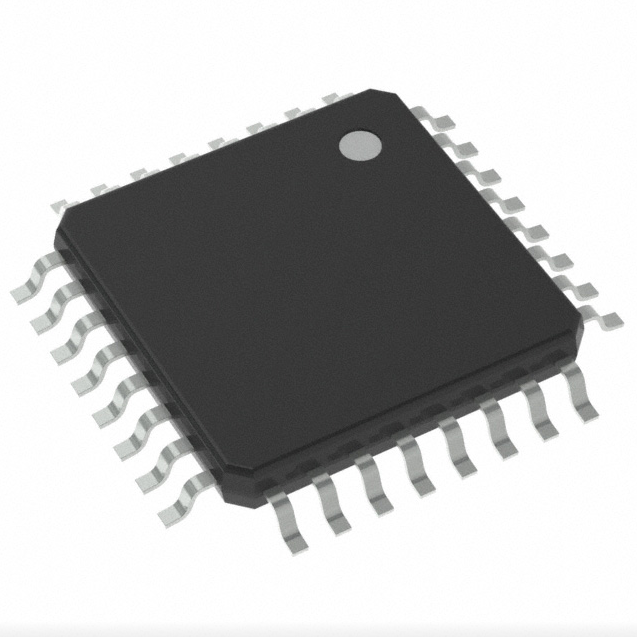

Need some extra controllers for your Arduino Uno, these are the controllers used on the Arduino Uno. This is the SMD version we also stock the DIP version.

ALL OUR ITEMS ARE LOCALLY STOCKED AND SHIPS IMMEDIATELY!

Specifications

Core Size: 8-Bit
Speed: 20MHz
Connectivity: I²C, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O: 23
Program Memory Size: 32KB (16K x 16)
Program Memory Type: FLASH
EEPROM Size: 1K x 8
RAM Size: 2K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Data Converters A/D 8x10b
Operating Temperature: -40°C ~ 85°C (TA)
Package: 32-TQFP
